Core Laboratory

ARCHITECT ci4100

High productivity.

The ARCHITECT ci4100 combines ARCHITECT c4000 and ARCHITECT i1000SR instruments − offering lower volume laboratories the enhanced efficiency and productivity employed by larger volume laboratories.

For in vitro diagnostic use only.

ARCHITECT ci4100

900 Maximum tests per hour

180 Sample load-up capacity

115 Up to 115 refrigerated reagent positions

System Overview

High productivity.

The ARCHITECT ci4100 combines ARCHITECT c4000 and ARCHITECT i1000SR instruments − offering lower volume laboratories the enhanced efficiency and productivity employed by larger volume laboratories.

The ARCHITECT ci4100 offers a maximum throughput of up to 900 tests per hour, including 800 clinical chemistry and 100 immunoassay tests. Featuring a load-up capacity of 180 samples with 35 priority positions, the ARCHITECT ci4100 has up to 115 refrigerated reagent positions plus Integrated Chip Technology (Na+, K+ and Cl-).

For in vitro diagnostic use only.

Technical Details

System Specifications

Core system specifications for the ARCHITECT ci4100.

Methods

See c4000 and i1000SR specifications

Maximum Throughput

Up to 900 tests/hour

Sample Types

See c4000 and i1000SR specifications

Sample Tubes

Height: 72-102 mm
Diameter: 9.6-16.1 mm

Sample Cup

Yes (50 µL dead volume)

Sample Capacity

180

Sample Barcode Types

Code 39, Codabar, Interleaved 2 of 5, Code 128

Sample Result Storage

50,000

Sample Volume

See c4000 and i1000SR specifications

Automatic Dilution

Yes

Reagent Capacity

Up to 115 refrigerated positions plus patented ISE (Na+, K+ and Cl-)

Hematology

CELL-DYN Hematology Solutions

Abbott's CELL-DYN portfolio brings together automated hematology analyzers, reagents, calibrators and controls for laboratories with different testing volumes. The systems are designed to support efficient hematology workflows while helping laboratories manage routine and more demanding samples.

CELL-DYN systems are intended for in vitro diagnostic use.

Medium-Volume Hematology

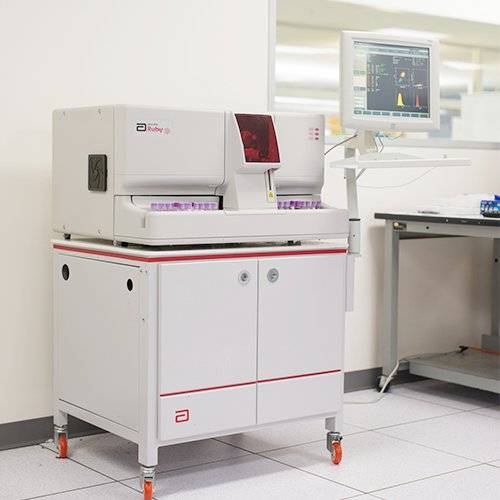

CELL-DYN Ruby

Get it right the first time.

CELL-DYN Ruby is designed for medium-volume laboratories that need reliable hematology performance with efficient, standardized workflows. It supports fast complete blood count processing while helping reduce repeat work and unnecessary manual review.

Its optical technologies support reliable WBC, red blood cell and platelet analysis, while rules-based result annotations and an intuitive touch-screen interface help laboratories maintain consistency across operators.

Less repeat workOptical analysis helps reduce microscopic blood smear reviews and repeat testing.

Standardized workflowRules-based annotations support consistent result handling across laboratory personnel.

Simple operationTouch-screen software provides customizable views, automated monitoring and guided maintenance.

CELL-DYN Ruby

84/hrMaximum CBC + differential throughput in autoloader mode

4-angleOptical MAPSS multiple scatterplot analysis for WBC and differential

10,000Results stored with graphics in the data-management system

Technical Details

Ruby Specifications

Selected system details for the CELL-DYN Ruby hematology analyzer.

Maximum Throughput

CBC + Differential: up to 84 per hour

Sample Volume

Open mode: 150 μL; sample loader: 230 μL

Reagents

Four reagents including reticulocytes

WBC / Differential

4-angle optical MAPSS Multiple Scatterplot Analysis

Platelets

Dual-angle optical analysis, without extra reagent or reflex-testing requirement

Reticulocytes

New Methylene Blue method with supravital staining

Data Management

Windows-based system, rules-based annotations, on-board QC, Levey-Jennings plots, moving averages, Westgard rules and storage for 10,000 results with graphics.

Dimensions

H 19.25 in (49.9 cm) × W 34 in (86.4 cm) × D 30.25 in (76.8 cm)

Weight

232 lb (105.2 kg)

CELL-DYN Family

Hematology Analyzers

A portfolio of automated hematology analyzers designed for laboratories with different testing volumes and workflow requirements.

CELL-DYN Emerald 22 AL

Automated hematology analyzer delivering a 5-part differential for low- to mid-volume laboratories.

Throughput40 samples/hour

Autoloader50 tubes

Sample size21 μL

Internal storage3,000 records with histograms

CELL-DYN Emerald 22

Compact hematology analyzer delivering a 5-part differential for low-volume laboratories.

Throughput45 samples/hour

Sample size~17 μL

Internal storage1,000 records with histograms

Differential5-part

CELL-DYN Emerald

Compact hematology analyzer delivering reliable 3-part differentials for low-volume laboratories.

ThroughputUp to 57 samples/hour

Sample size~9.8 μL

Internal storage1,500 records with histograms

Differential3-part

The CELL-DYN systems are intended for performing in vitro diagnostic assays on samples of human origin. Follow applicable system manuals, labeling and reagent instructions for proper use.
